Analog Panel Meters Ammeter Voltmeter AC 60x60 0-500V

  • 1
  • 2
  • 3

Accuracy Class : 2.5

Measuring Range : 0-500V

Model Number : TP-60 ACV

Brand Name : ymiho

Place of Origin : Wuxi, China

Dimensions : 60x60mm

Display Type : Analog Only

Operating Temperature : -20~50℃

HS Code : 9028309000

Outer Carton Size : 41x34x37cm

Standard Package : 100pcs/CTN

N.W. : 7KG

G.W. : 8KG

MOQ : 100

Price : $2.90-4.60 / piece

Packaging Details : carton packaging

Delivery Time : 15 work days

Contact Now

Analog Panel Meters - Ammeter & Voltmeter AC 60x60 0-500V
Professional analog panel meters designed for precise current and voltage measurement in industrial applications.
Product Construction
This series features a durable PMMA plastic external case with a non-combustible ABS plastic base. Alternatively, non-combustible PC plastic can be used for both case and base. Both material options maintain structural integrity without deformation at 70°C and 120°C respectively.
Customization Options
We offer OEM services with customizable parameters including measurement ranges, changeable scales, waterproofing, and other specialized requirements.
TP Series Ammeter Specifications
Type AC Ranges DC Ranges
Microamps (μA) 50μA, 100μA, 150μA, 500μA 50μA, 100μA, 150μA, 500μA
Milliamps (mA) 1mA, 2mA, 5mA, 10mA, 20mA, 30mA, 50mA, 75mA, 100mA, 150mA, 200mA, 250mA, 300mA, 500mA 1mA, 2mA, 5mA, 10mA, 20mA, 30mA, 50mA, 75mA, 100mA, 150mA, 200mA, 250mA, 300mA, 500mA
Amps (A) 1A, 2A, 3A, 7.5A, 10A, 20A, 30A, 50A 1A, 2A, 3A, 7.5A, 10A, 20A, 30A, 50A
With External CT (ACA) X1A: 10/1A, 15/1A, 20/1A, 30/1A, 40/1A, 50/1A, 60/1A, 75/1A, 100/1A, 150/1A, 200/1A, 300/1A, 400/1A, 500/1A, 600/1A, 1000/1A
X5A: 10/5A, 15/5A, 20/5A, 30/5A, 40/5A, 50/5A, 60/5A, 75/5A, 100/5A, 150/5A, 200/5A, 300/5A, 400/5A, 500/5A, 600/5A, 1000/5A		 50mV, 60mV, 75mV: 10A, 15A, 20A, 30A, 40A, 50A, 60A, 100A, 150A, 200A, 250A, 300A, 400A, 500A, 600A, 800A, 1000A, 1500A, 2000A, 2500A, 3000A
TP Series Voltmeter Specifications
Type AC Voltage Ranges DC Voltage Ranges
Volts (V) 50mV, 60mV, 75mV, 100mV, 5V, 10V, 15V, 20V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 300V, 400V, 450V, 500V, 600V 50mV, 60mV, 75mV, 100mV, 5V, 10V, 15V, 20V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 300V, 400V, 450V, 500V, 600V

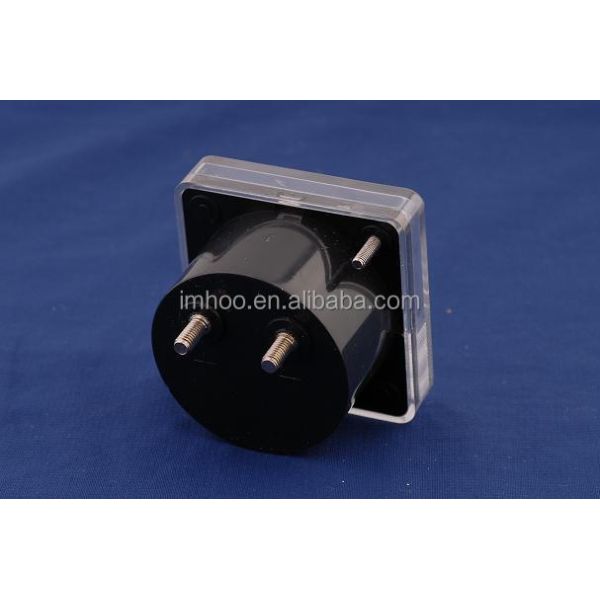

Analog Panel Meters Ammeter Voltmeter AC 60x60 0-500V Analog Panel Meters Ammeter Voltmeter AC 60x60 0-500V Analog Panel Meters Ammeter Voltmeter AC 60x60 0-500V
Dimensions (millimeters)
Model Case Dimension Panel Cutout Dimension
TP-45 45.2 × 45.2 × 8.5 ø38
TP-50 51 × 51 × 13 ø45.5
TP-60 60 × 60 × 14 ø51
TP-80 81.3 × 81.3 × 16 ø64
Packaging & Shipping
Analog Panel Meters Ammeter Voltmeter AC 60x60 0-500V
Our Services
  • High Quality Products at Competitive Prices
  • Reliable Delivery - We honor our promised delivery timelines
  • Quality Assurance - We address any quality issues promptly
  • OEM Services Available
  • Custom Product Research and Development
